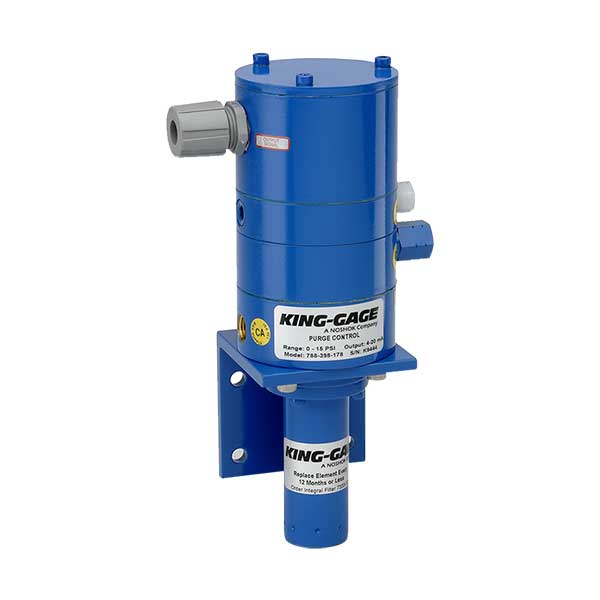

788 Series Differential Pressure Purge Control Level Transmitter
Generates a constant flow of compressed air to purge a downpipe. The integral differential pressure transmitter provides 4 mA to 20 mA output proportional to liquid level. Provides 1:1 pressure signal to a compatible indicator or external transducer through 1/4 in. airline tubing. Backpressure sensed is equivalent to the hydrostatic head pressure due to actual liquid depth.
Technical Resources
- 788-Series-DP-Control-Transmitter.pdf
- EX-1846_738 _ 788 DP Calibration Manual.pdf
- K-1090-2-788 DP Purge Control.pdf
- 1040-1.20 SP_D.pdf
- EX-1673-2 738-788-868-5600 DP Transmitters Calibration Instructions.pdf
