PT20 Series General Purpose Fixed Range Transmitters & Transducers
Provides reliable performance in general industrial applications with an accuracy ±0.50% of span (BFSL). This transmitter addresses media temperatures 32 °F to 176 °F (0 °C to 80 °C), and offers gauge, compound, absolute and vacuum ranges from 1 psig to 15,000 psig. RoHS compliant, CE compliant to suppress RFI, EMI and ESD, and cULus compliant.
PT30 Series High Performance Fixed Range Transmitters & Transducers
Delivers improved performance specifications and expanded options with an accuracy ±0.25% of span (BFSL). The PT20 Series is available in gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psig and delivers improved media temperature performance from -22 °F to 221 °F (-30 °C to 105 °C). RoHS compliant, built to CE standards to suppress RFI, EMI and ESD, cULus pending.
PT40 Series High Accuracy Fixed Range Transmitters & Transducers
Designed for applications where high accuracy is critical.This transmitter provides premium accuracy with a standard accuracy ±0.25% of span (BFSL) with ±0.125% option. This transmitter is available in gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psig, with a wide variety of process and electrical connection options. It also has field adjustable offset and span. CE compliant to suppress RFI, EMI and ESD, RoHS compliant.
PT41 Series High Pressure Fixed Range Transmitters & Transducers
Engineered for robust performance in highpressure applications, the PT41 Series provides accuracy±0.50% of span (BFSL) with ±0.25% option. Available in pressure ranges from 23,000 psig to 145,000 psig with current and voltage outputoptions.CE compliant to suppress RFI, EMI and ESD, RoHS compliant.

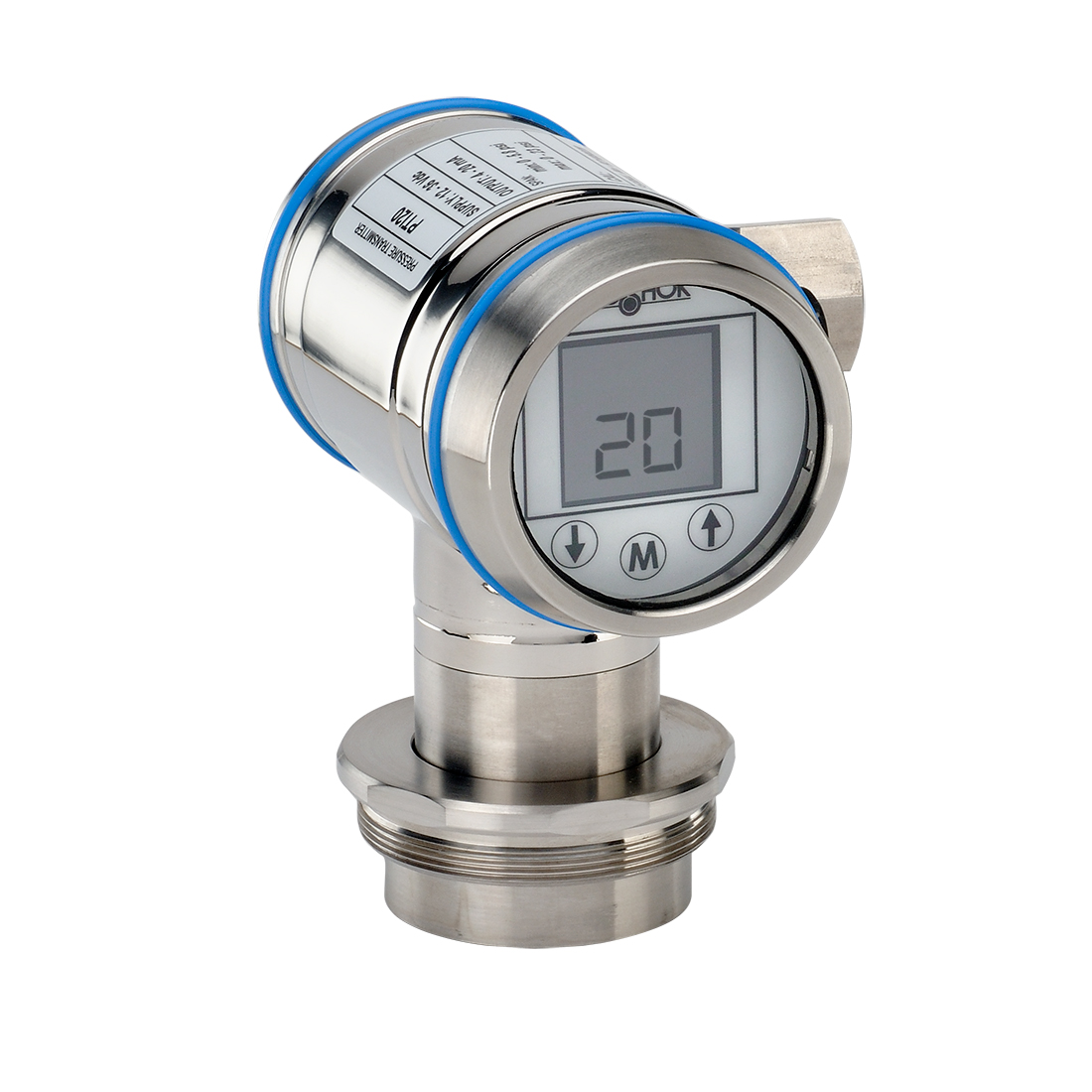

PTI20 Series Intelligent Industrial Pressure Transmitters
Intelligent pressure transmitter designed for general purpose applications where temperature compensated accuracy is important. Features include multiple electrical and process connection options, an accuracy ±0.2% of adjusted span, 6 adjustable pressure ranges and a 4:1 turndown ratio. HART® protocol is available. Applications include general industrial, pulp and paper, water and wastewater, power generation, and food and beverage.

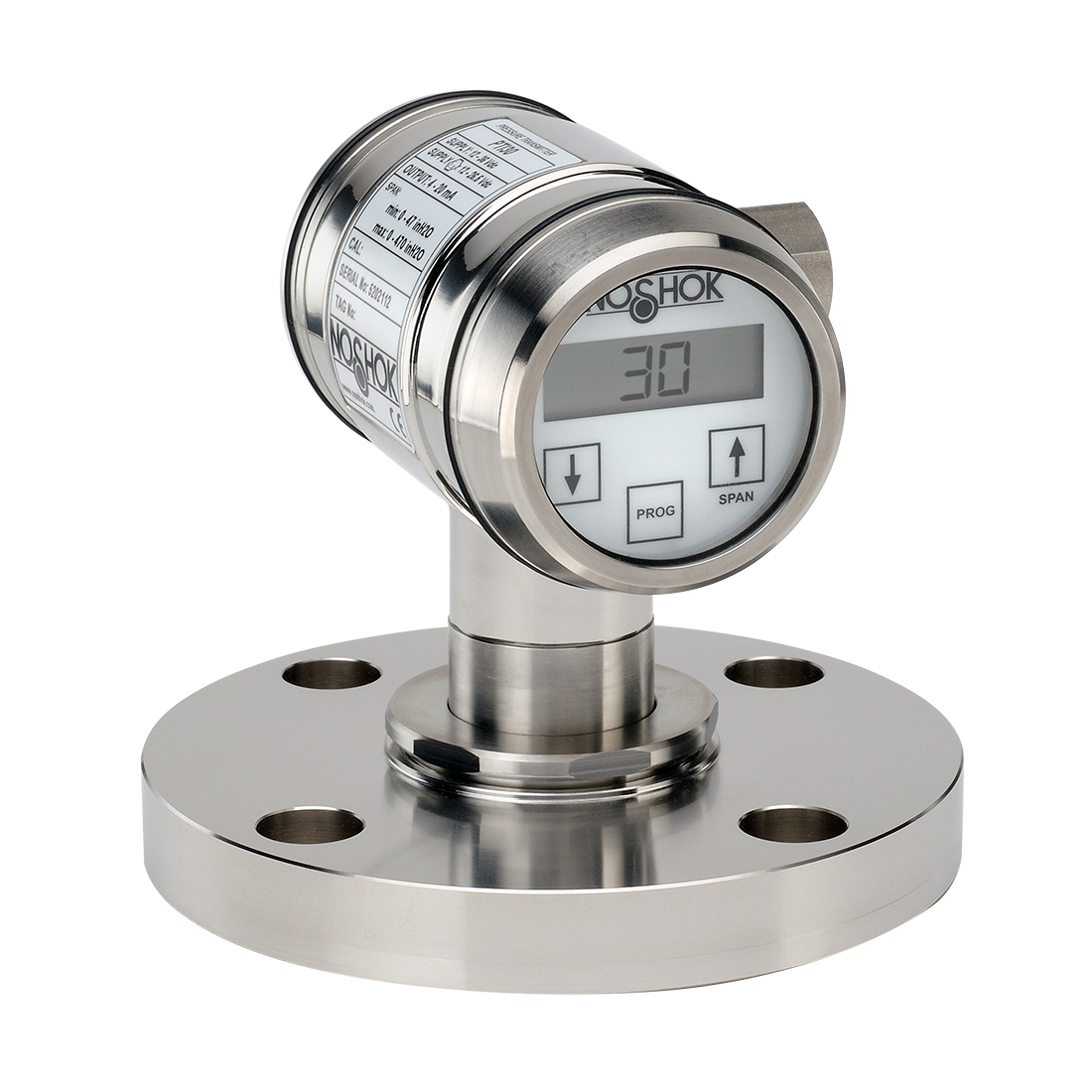

PTI30 Series Intelligent Pressure Transmitters
The NOSHOK PTI30 pressure transmitter provides improved rangeability and is engineered for applications where improved accuracy and temperature compensation are required. Features include multiple electrical and process connection options, an accuracy ±0.1% of adjusted span, 5 adjustable pressure ranges and a 10:1 turndown ratio. HART® protocol is available. Applications include general industrial, pulp and paper, water and wastewater, power generation, and food and beverage.
PTI40 Series Premier Accuracy Intelligent Pressure Transmitters
The NOSHOK PTI40 pressure transmitter provides the highest accuracy of the PTI Series at ±0.075% of adjusted span and is designed for applications where accuracy and temperature compensation are critical. Features include 4 adjustable pressure ranges and a 100:1 turndown ratio. HART® protocol is available. Applications include general industrial, pulp and paper, water and wastewater, power generation, and food and beverage.

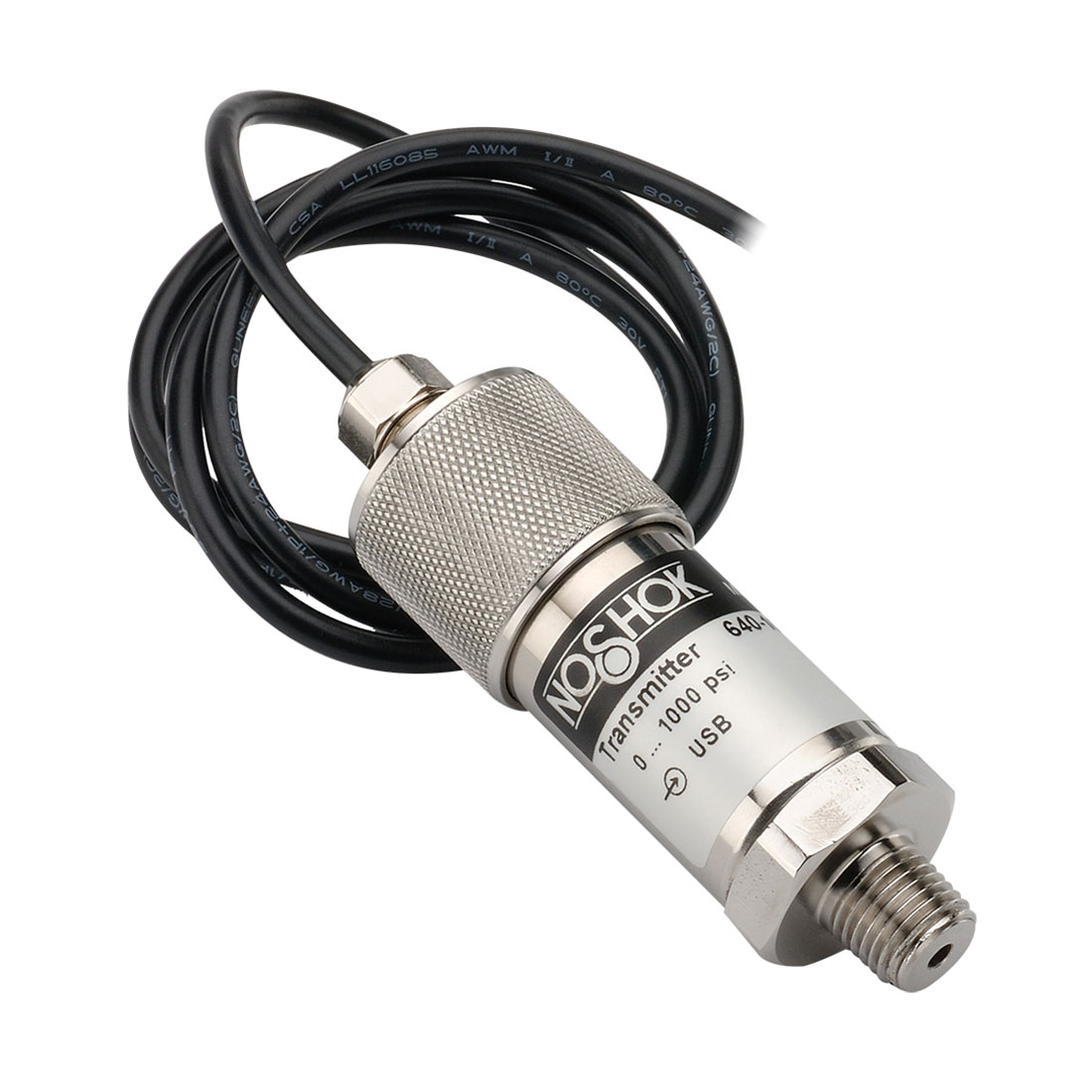

640 Series Precision Heavy-Duty Pressure Transducers
Heavy-duty NOSHOK transmitter engineered for precision measurement in demanding applications where accuracy and repeatability are a high priority. This sensor features standard 4 mA to 20 mA output, and gauge, vacuum and absolute ranges are available. Ideal for applications including aerospace equipment, computer interface and data logging, laboratory and test equipment, and precision measurement.

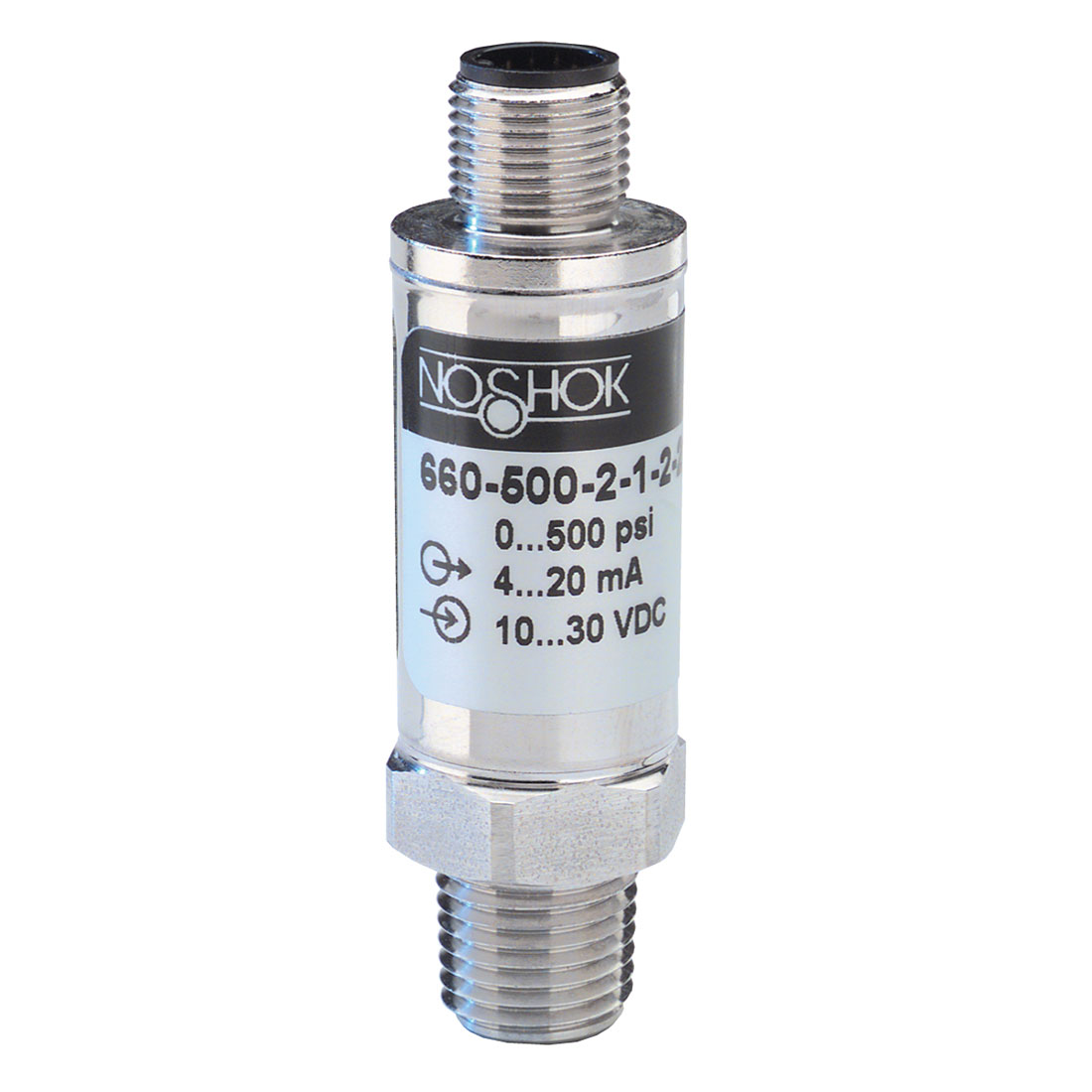

660 Series High Performance Micro-Size Transducers
Compact transducers designed to manage pressure spikes and process pulsation. This sensor features a 1.0 mm standard orifice size for improved performance in dynamic applications. Current or voltage outputs available. Ideal for applications including hydraulics and pneumatics, mobile hydraulics, power generation, pumps and compressors, and refrigeration controls. Standard orifice is 1.0 mm.
